POWER STICK  160Wııı/200Wııı

Features and Advantages

• Portable Stick Welder

• New Generation IGBT Inverter Technology

• Built-in Anti-Sticking and Hot Start

• Adjustable Arc force

• High Duty Cycle and welding capacity

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent welding performance with Rutile ( E 6013), Basic ( E 7018)  as well  as Cellulosic Type Electrodes ( E 6010) in diameters of 1.6 mm. to 5mm.

• Easy-to-use and user-friendly control panel

• Stepless welding current adjustment knob

• Welding mode SMAW/DC TIG selection switch

• Digital ampermeter

• Equipped with thermal protection and it’s indicator light.

• Equipped with voltage protection this improves the reliability.

• Easy welding cable connections with European type quick connectors.

• Fan cooling system

• IP21S Protection Class.

• Lightweight, Small and Pantented Compact Design

Specifications

Model	POWER STICK 160III	POWER STICK 200III

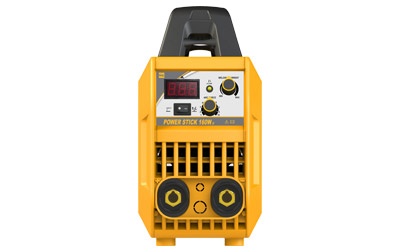

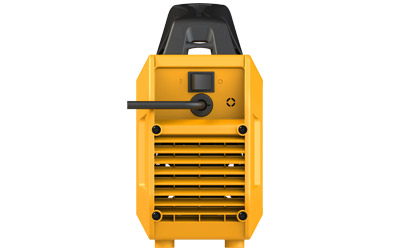

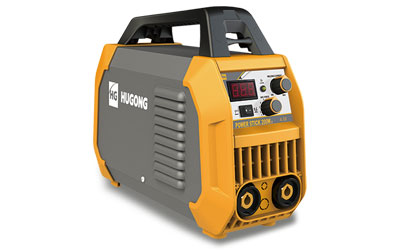

Product Pictures
Input Power (V)	240	240
Rated Input Current (A)	29	35
Rated Input Capacity (kVA)	6.6	8.4
Rated Open Circuit Voltage(V)	83	83
Welding Current Adjustment Range(A)	30-160	30-200
Rated Output(A) (20℃) / (40℃)	40%20%@160	40%20%@200
Weight (kg)	6.7	6.7
LxWxH (mm)	395x154x299	395x154x299
