CT  520

Features and Advantages

• Portable Multi-Process Inverter Welder &  Plasma Cutter

• 3 in 1 ; Pulse TIG, MMA and Plasma Cutting

• New Generation IGBT Inverter Technology

• Perfect HF ignition, Pulse TIG gives perfect  welding solution on thin materials with  perfect bead appearance.

• Excellent welding and cutting performance  carbon steels, low-alloy steels and stainless  steels and aluminum

• Ideally suited for internal & external  critical cutting  and grid cutting tasks

• Lightweight, Small and Patented  Design

Specifications

Model	CT 520

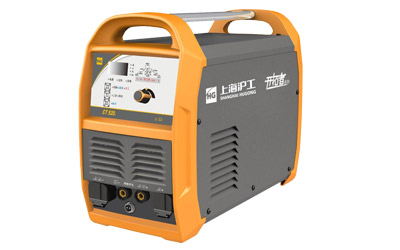

Product Pictures
Input Power (V)	230
Rated Input Current (A)	40
Rated Input Capacity (kVA)	8.8
Rated Open Circuit Voltage(V)	70/285
Welding / Cutting Current Adjustment Range(A)	70/285
Rated Output(A) (40℃)	40%@200/40%@50
Weight (kg)	12
Electrode Diameter (mm)	1.6-4.0
LxWxH (mm)	470x200x350
