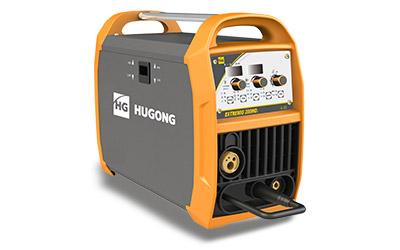

EXTREMIG  200WDııı

Features and Advantages

• Portable Multi-Process Inverter Welder.

• Synergetic and manual control.

• New Generation advanced IGBT Inverter Technology.

• Multiple Process with MIG ( GMAW), MMA ( SMAW) and Lift TIG ( GTAW).

• Ideal for welding of carbon steels, low-alloy steels, stainless steels.

• Excellent welding with steel, stainless steel, aluminium and flux cored wires.

• Welding mode,2T/4T and spot welding selection.

• Digital welding current and voltage display.

• Equipped with voltage protection and thermal protection.

• Power, Overload and Under/Over-Voltage LED indicators.

• Stepless wire feeding speed ,voltage and spot welding timer adjustment knob.

• Built-in anti-sticking, hot start and adjustable arc force for MMA welding.

• Easy welding cable connections with European type quick connectors.

• Fan cooling system.

• IP21S Protection Class.

• Lightweight, Small ,Compact and patented design.

• Weight is only 15Kg.

• Dimensions (cm.) (L×W×H) 55.7× 24.2×43.7.

Specifications

Model	EXTREMIG200WDIII
Product Pictures
Input Power (V)	230
Rated Input Current (A)	36
Rated Input Capacity (kVA)	8.4
Rated Open Circuit Voltage(V)	69
Welding Current Adjustment Range(A)	MIG30-200/MMA20-170/TIG15-200
Rated Output(A) (40℃)	20%@200
Weight (kg)	15
LxWxH (mm)	20%@200
