INVERDELTA  300ııı/400ııı

Features and Advantages

• Portable Stick Welder

• New Generation IGBT Inverter Technology

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Built-in Hot Start and Adjustable Arc force

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent welding performance with Rutile ( E 6013), Basic ( E 7018)  as   well as Cellulosic Type Electrodes ( E 6010)  in diameters of 1.6mm to 5 mm

• High Duty Cycle and welding capacity

• Easy-to-use and user-friendly control panel

• Stepless welding current adjustment Knob

• Hot start and arc force adjustment knobs

• Digital ampermeter / voltmeter

• Equipped with Thermal Protection and it’s indicator light

• Equipped with voltage protection this improves the reliability

• Power Indicator light

• Easy welding cable connections with European type quick connectors

• Fan cooling system

• IP21S Protection Class

Specifications

Model	INVERDELTA 300III	INVERDELTA 400III	INVERDELTA 400III

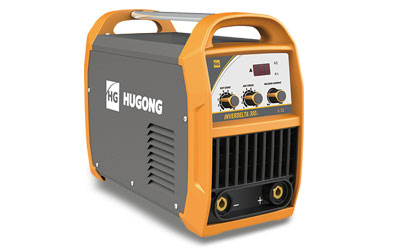

Product Pictures
Input Power (V)	220	220	400
Rated Input Current (A)	34	50	29
Rated Input Capacity (kVA)	13	19	19
Rated Open Circuit Voltage(V)	82	82	82
Welding Current Adjustment Range(A)	15-300	15-400	15-400
Rated Output(A) (20℃) / (40℃)	60%25%@300	60%25%@400	60%25%@400
Weight (kg)	19	19	19
LxWxH (mm)	510x240x420	510x240x420	510x240x420
